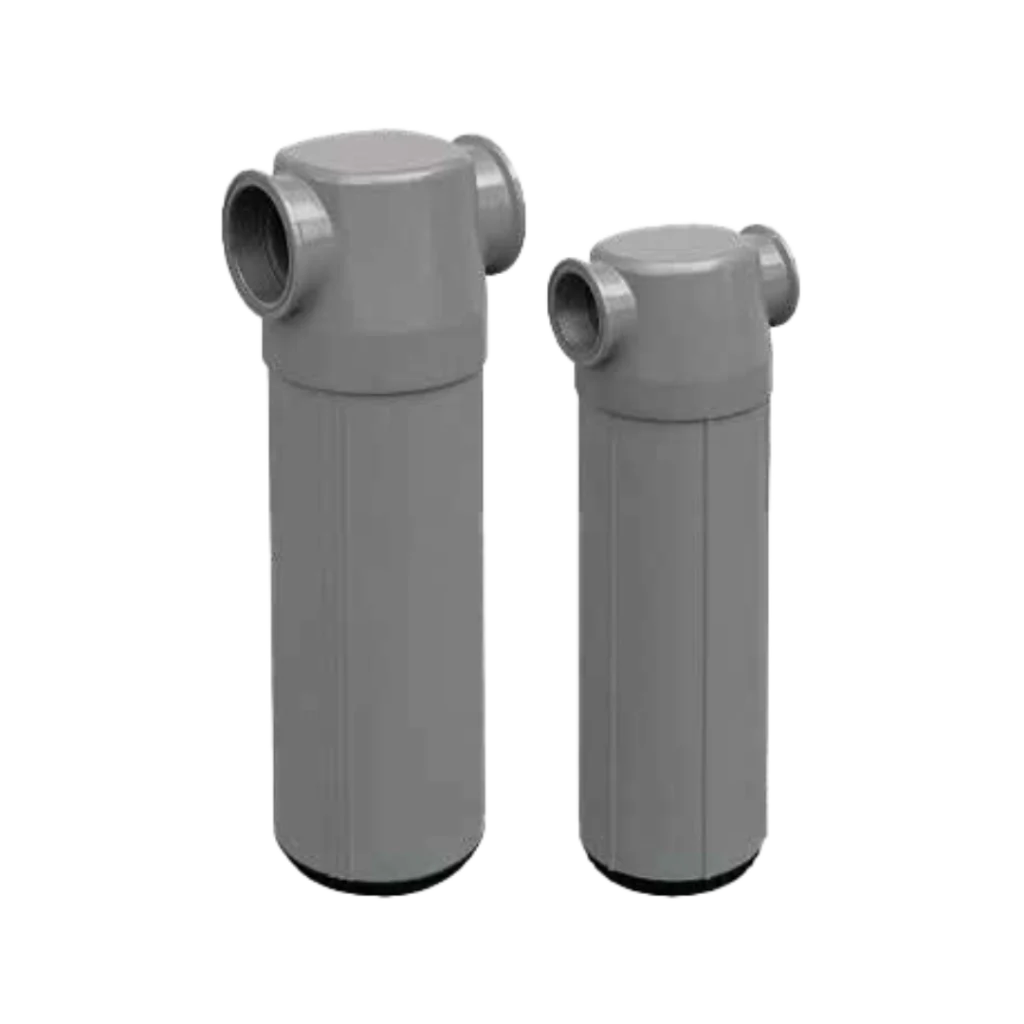

GWS Series
Water Separators
(15 scfm – 1600 scfm)
Mikropor water separators have been designed for the removal of bulk liquid water and particulate from compressed air and gases. Unique centrifugal action removes contaminants at low-pressure drop for maximum energy saving.
Conditions for Pressure
Nominal
Maximum
Working Pressure
100 psi
230 psi
Conditions for Temperature
Minimum
Maximum
Working Temperature
35°F
176°F
| Pressure (psig) | 15 | 44 | 73 | 100 | 131 | 160 | 189 | 218 | 232 | 261 | 261 |
| Factor F3 | 0.5 | 0.75 | 0.87 | 1 | 1.12 | 1.22 | 1.32 | 1.44 | 1.50 | 1.57 | 1.63 |
