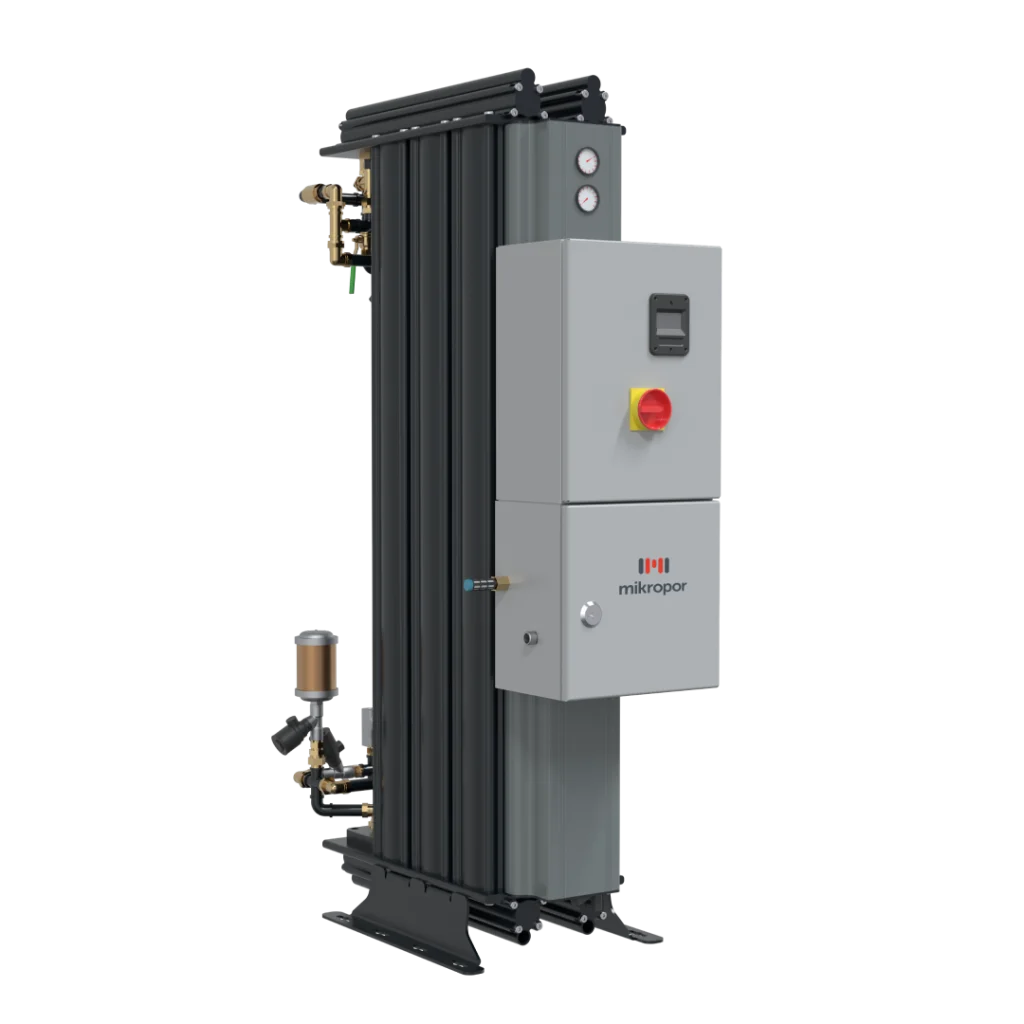

M-MNG-PRO Series
PSA Modular Nitrogen Generators
Pressure Swing Adsorption (PSA) type Nitrogen Generation System that is used to separate and enrich nitrogen from oxygen employs CMS (Carbon Molecular Sieve) as adsorbent. CMS adsorbs oxygen and water vapor molecules under a certain pressure while allowing nitrogen to pass through in the line.
Nominal Inlet Compressed Air Pressure
108 psig
Max. Inlet Compressed Air Pressure
145 psig
Nitrogen Pressure Drop
87 psig
Max. Nitrogen Outlet Pressure
125 psig
Ambient Temperature
77°F
Inlet Air Dewpoint
37°F (ISO Class 4)
Min. Ambient Temperature
41°F
Max. Ambient Temperature
115°F
