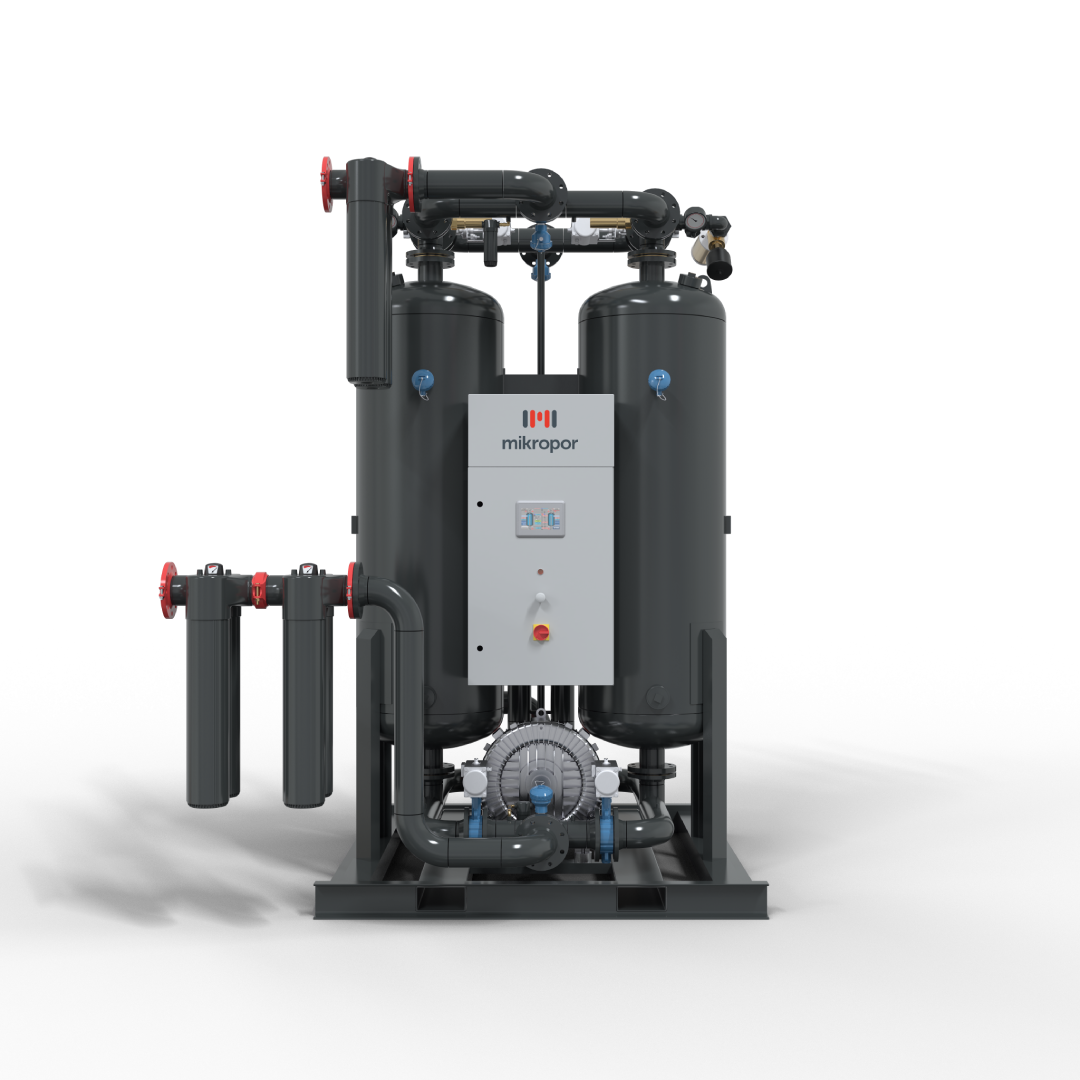

MBL Series
Blower Purge Heated Desiccant Air Dryers
(500 scfm – 10000 scfm)
MBL Series Dryer & Filtration Packages utilize a Heater/Blower Circuit to reduce/eliminate purge air losses and provide verydry / higher air quality (-40 deg oF) for very critical compressed air applications. Siemens Touchscreen PLC with Pre/PostFiltration Included for Total Air Quality Management
Conditions
Nominal
Maximum
Working Pressure
100 psi
200 psi
Inlet Temperature
100°F
115°F
Ambient Temperature
100°F
120°F
Pressure Dewpoint
- 40°F
- 40°F
| Inlet Temperature (°F) | 70 | 80 | 90 | 100 | 105 | 110 | 115 | ||||||
| Factor F1 | 1.12 | 1.09 | 1.06 | 1.00 | 0.93 | 0.86 | 0.80 | ||||||
| Pressure (psig) | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 175 | 200 |
| Factor F3 | 0.56 | 0.65 | 0.74 | 0.83 | 0.91 | 1 | 1.06 | 1.08 | 1.12 | 1.16 | 1.20 | 1.29 | 1.37 |
