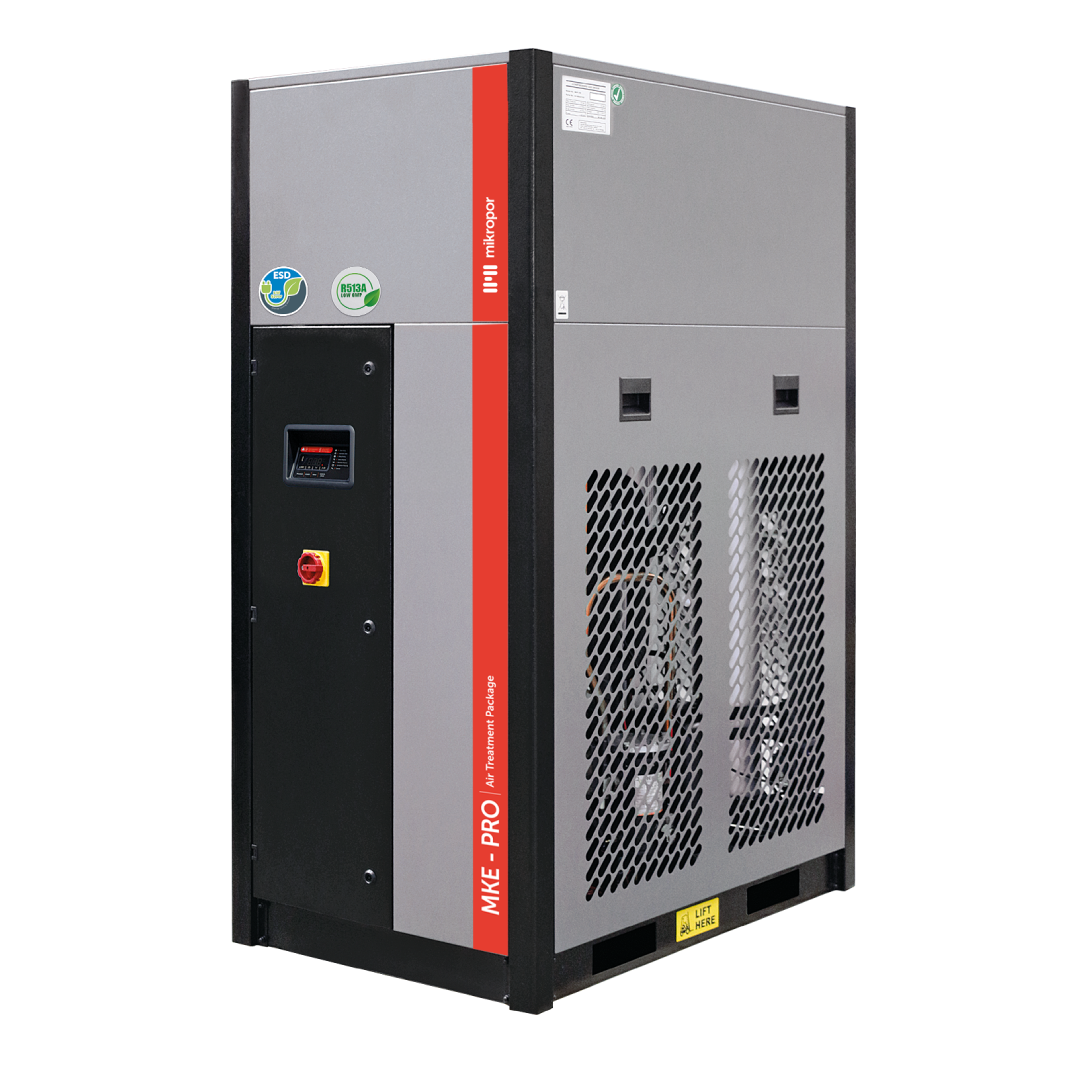

MK-US-PRO Series

Digital Cycling Ref. Air Dryers

MK Series Packages are an “All in One” air quality solution featuring 1 micron Pre-Filter, Microprocessor Controlled Digital Cycling controls with High Efficiency 3 in 1 Heat Exchanger and a 0.01 micron Post-Filter in one package. Process Protection is ensured with a combined reduction to installation costs/requirements. Class 1.4.1 as per ISO8573.1:2010 Air Quality may be achieved without addition of any other components

Conditions

Nominal

Maximum

Working Pressure

100 psi

230 psi

Inlet Temperature

100°F

140°F

Ambient Temperature

100°F

120°F

Pressure Dewpoint

40°F

Inlet Temperature (°F)	85	90	95	100	110	120	130	140	150
Factor F1	1.20	1.14	1.08	1.00	0.75	0.60	0.50	0.45	0.35
Ambient Temperature (°F)	60	80	90	100	105	110	115	120
Factor F2	1.12	1.08	1.06	1.00	0.96	0.90	0.80	0.65
Pressure (psig)	50	60	75	100	115	125	150	175	200	230
Factor F3	0.75	0.77	0.85	1.00	1.06	1.10	1.16	1.25	1.30	1.35
