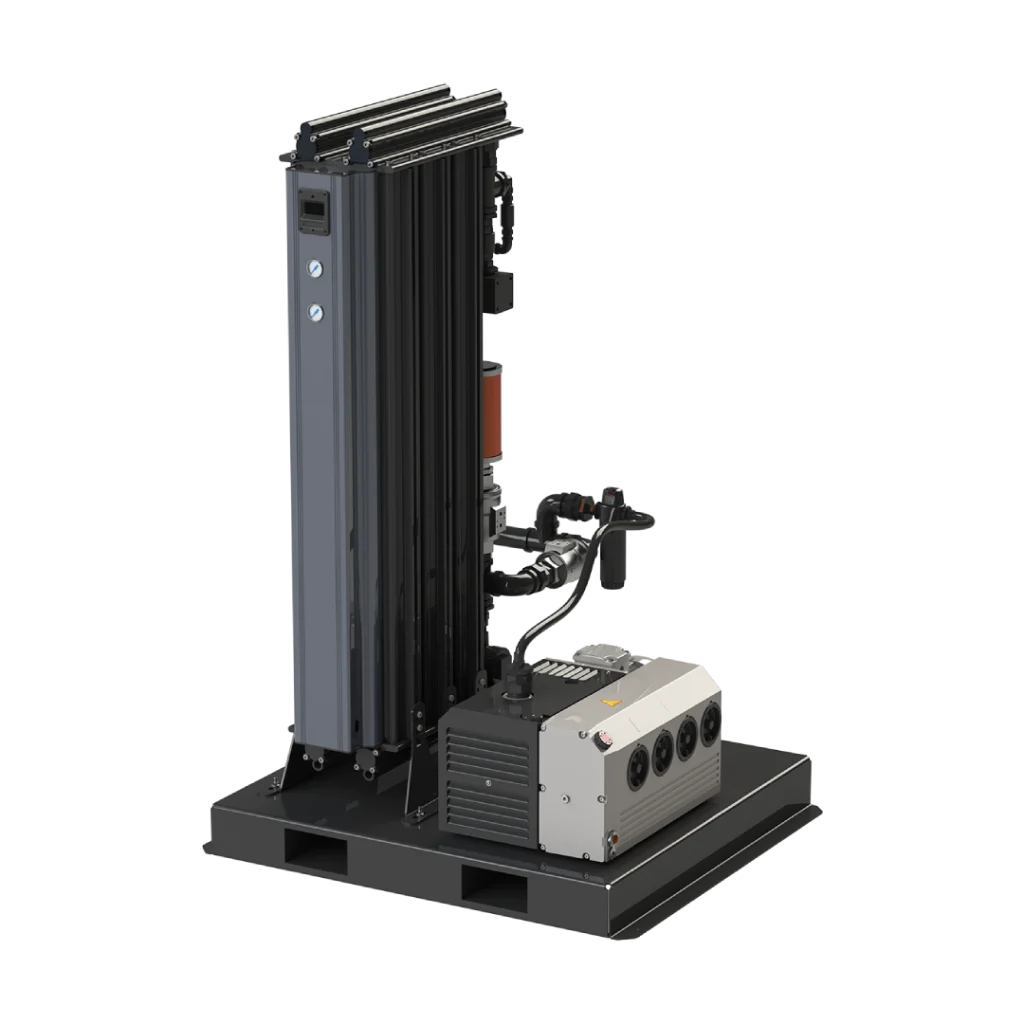

MMD-VP Series
Vacuum Modular Desiccant Air Dryer
Mikropor MMD-VP Series Modular Vacuum Purge Heatless Desiccant Air Dryers supply high-quality dry air which has -40°C dew point or optionally -70°C dew point to the system with affordable prices and reliable way.
Conditions
Nominal
Maximum
Working Pressure
100 psi
232 psig
Inlet Temperature
95 °F
122 °F
Ambient Temperature
77 °F
122 °F
Pressure Dewpoint
104 °F
104 °F
| Inlet Temperature (°F) | 70 | 80 | 90 | 100 | 105 | 110 | 115 | 120 | |||||||
| Factor F1 | 1.12 | 1.09 | 1.06 | 1.00 | 0.93 | 0.86 | 0.80 | 0.75 | |||||||
| Pressure (psig) | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 175 | 200 | 225 | 230 |
| Factor F3 | 0.56 | 0.65 | 0.74 | 0.83 | 0.91 | 1 | 1.06 | 1.08 | 1.12 | 1.16 | 1.20 | 1.29 | 1.37 | 1.45 | 1.52 |
